High quality high speed rotary Joint for cooling water, hydraulic oil, air

High quality high speed rotary Joint for cooling water, hydraulic oil, air
High quality high speed rotary Joint for cooling water, hydraulic oil, air High quality high speed rotary Joint for cooling water, hydraulic oil, air High quality high speed rotary Joint for cooling water, hydraulic oil, air

Large Image :  High quality high speed rotary Joint for cooling water, hydraulic oil, air

Product Details:

Place of Origin: China
Brand Name: Jieyi
Certification: ISO9001
Model Number: JYHD40 hydraulic rotary joint

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: USD 20~50 PCS
Packaging Details: Carton packaging or Plywood wooden box packaging
Delivery Time: 3 ~ 4 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Pressure: 10 Bar Temperature: 100 ℃
Speed: 1000 Rpm Media: Water, Hydraulic Oil, Air, Salt Water
Size: 1/4'' ~ 4''; Or Customized Connection: Thread
Standard: BSPP, BSPT, NPT Seal: Imported Seal
Bearing: NSK, SKF, HRB Housing: Copper
Rotor: SS304 Product Name: Hydraulic Rotary Joint

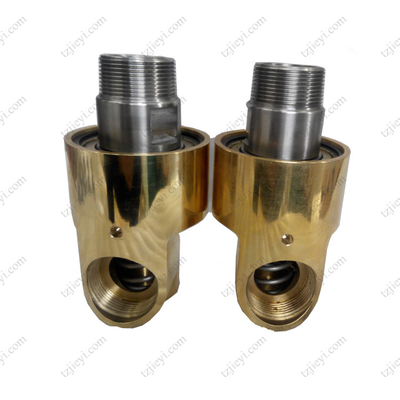

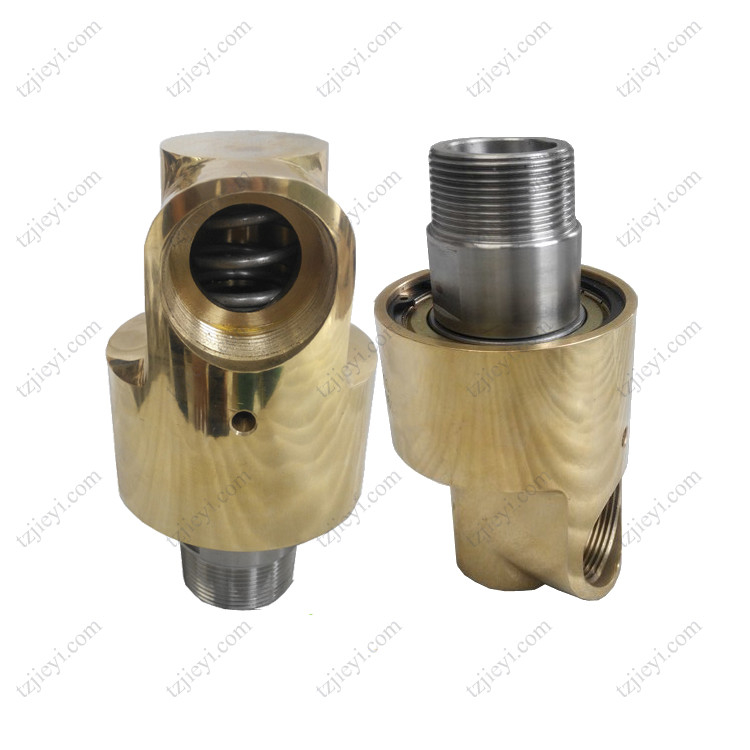

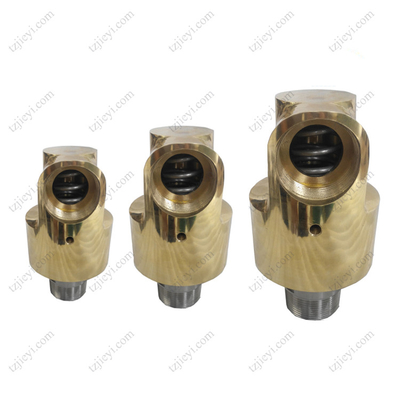

High quality high speed rotary joint for cooling water, hydraulic oil, air


Rotary Joint, is also called rotary union or swivel joint.

The H series rotary joint is intended for cooling water, with zero leakage and long lasting performance.

The water rotary union is made using high-quality brass and features a balanced sealing design, double-ball bearing, integrated
structure, single-spring design and self-support fixture.

A rotary joint is composed of these following parts: housing, nipple, bearing, stationary seal ring and spring.



   Use parameters
 Pressure  10 bar / 1.0 MPa
Temperature  100 ℃ / 212 °F
Speed  1000 rpm
Media   Water, Hydraulic oil, Air, Salt water
Size  1/4'' ~ 4''; customized
Passages   Monoflow
Connection   Thread
Standard   BSPP/G, BSPT/Rc, NPT
Seal   Imported seal -- British Morgan
Bearing   NSK,  SKF,  HRB
Product name   Water Rotary Joint



                                High quality high speed rotary Joint for cooling water, hydraulic oil, air
Features:

  • Monoflow or Duoflow

  • Flat sealing technology

  • Excellent balanced seal design

  • Self-supporting

  • High-precision rolling bearings

  • Stainless steel outer tube

  • Good versatility, easy to interchangeLong life, high reliability



Product Show



High quality high speed rotary Joint for cooling water, hydraulic oil, airHigh quality high speed rotary Joint for cooling water, hydraulic oil, airHigh quality high speed rotary Joint for cooling water, hydraulic oil, air



Company Profile


High quality high speed rotary Joint for cooling water, hydraulic oil, air
High quality high speed rotary Joint for cooling water, hydraulic oil, air



Certificate


High quality high speed rotary Joint for cooling water, hydraulic oil, air



Delivery


High quality high speed rotary Joint for cooling water, hydraulic oil, air



Product packaging


High quality high speed rotary Joint for cooling water, hydraulic oil, air



Warehouse corner


High quality high speed rotary Joint for cooling water, hydraulic oil, air



Why choose us


1.Always Innovating
We have accumulated rich experirence in producing Rotary Joint,advanced equipment,advanced technology,professional staff.we keep on Innovating all the time.

2.Design Concept
Reasonable design, advanced structure,superior quality,long service life.

3.Reliable Quality
We are Alibaba Assessed Supplier,our products are certified by ISO9001,CE etc.

4.Short leading time
We have professional and advanced machines.we have 4 production line,can produce production quickly.

5.Good Price
We are crontroling each part cost so we can give customers the competitive price.

6.Internal Control
Internal inspection,all our products must be checked 3 times before packing.

7.Prompt Reply
We’ll reply your enquiry within 2 hours.



Contact us


If you have any needs, please feel free to contact us. We can produce according to your samples or drawings, we can also customize the design drawings for you according to your requirements, and then send them to you for confirmation!

Whatsapp / Wechat: 86-183 6668 9153

Skype: jieyi2021

E-mail: jacky@tzjieyi.com

Website: http://www.tzjieyi.com
