Product Details:
Payment & Shipping Terms:
|
| Pressure: | 350 Bar | Temperature: | 120 ℃ |
|---|---|---|---|
| Speed: | 1000 Rpm | Media: | Water, Hydraulic Oil, Air |
| Size: | 1/4'' ~ 2''; Or Customized | Connection: | THread |
| Standard: | BSPP/G, BSPT/Rc, NPT | Seal: | Imported Seal |
| Bearing: | NSK, SKF, HRB | Material: | SS304 / Carbon Steel |
| Product Name: | Water Rotary Joint |
Stainless steel 304 high speed water rotary joint for high pressure car washing machine G1/2''
| Use parameters | |
| Pressure | 350 bar / 35 MPa |
| Temperature | 120 ℃ / 248 °F |
| Speed | 1000 rpm |
| Media | Water, Gas, Oil |
| Size | 1/4'' ~ 2''; or customized |
| Connection | Thread |
| Standard | BSPP, BSPT, NPT |
| Seal | Imported seal |
| Bearing | NSK, SKF, HRB |
| Material | SS304 / Carbon steel |
| Product name | High pressure rotary joint |
Product Features
Monoflow
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
Stainless steel housing
Special options: threaded vent holes, low torque design
Seal Combinations:
Standard: Carbon Graphite/Bronze for water
Optional: Carbon Graphite/Ceramic for hot oil, hot water and saturated steam
E.L.S.: Tungsten Carbide/Ceramic for severe conditions (poor water quality), max. temperature 350°F

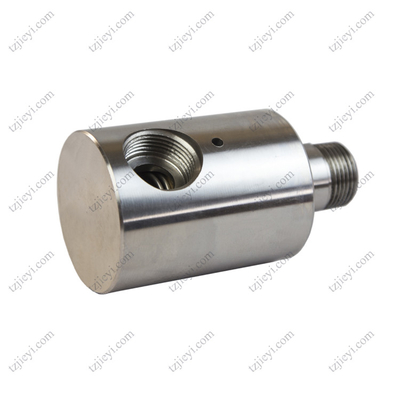

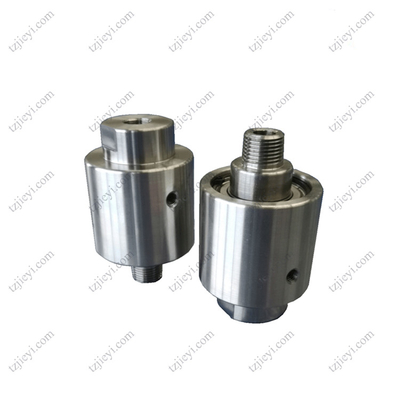

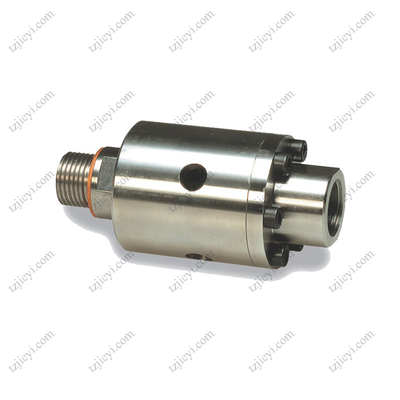

Product show
1.Always Innovating
We have accumulated rich experirence in producing Rotary Joint,advanced equipment,advanced technology,professional staff.we keep on Innovating all the time.
2.Design Concept
Reasonable design, advanced structure,superior quality,long service life.
3.Reliable Quality
We are Alibaba Assessed Supplier,our products are certified by ISO9001,CE etc.
4.Short leading time
We have professional and advanced machines.we have 4 production line,can produce production quickly.
5.Good Price
We are crontroling each part cost so we can give customers the competitive price.
6.Internal Control
Internal inspection,all our products must be checked 3 times before packing.
7.Prompt Reply
We’ll reply your enquiry within 2 hours.
If you have any needs, please feel free to contact us. We can produce according to your samples or drawings, we can also customize the design drawings for you according to your requirements, and then send them to you for confirmation!
