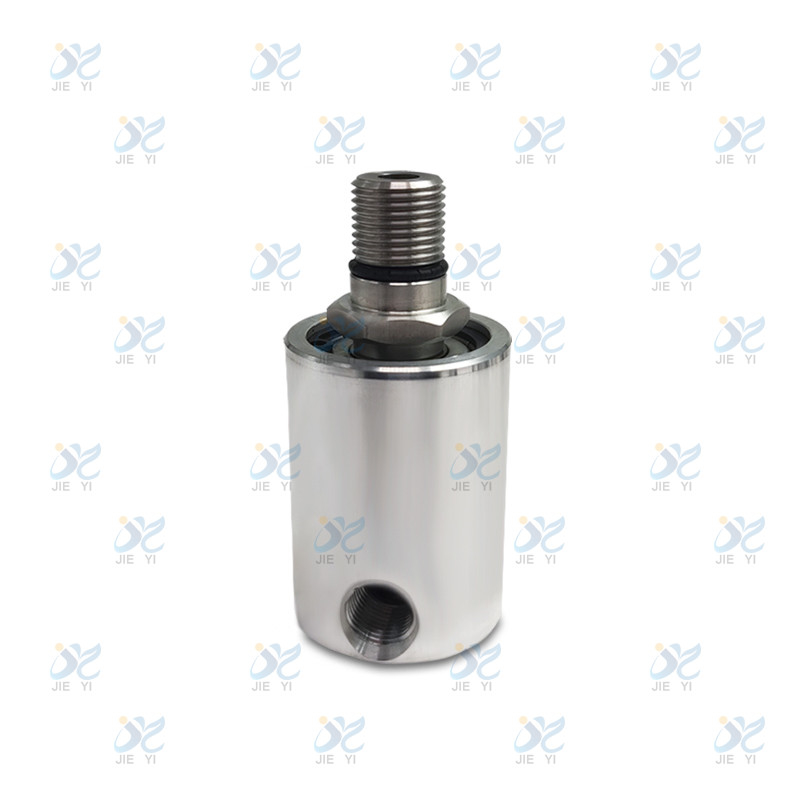

JY1109-082-188,Rotary Union, G 1/2" RH, 1/2" NPT

Deublin alternative products JY1205-000-151

DEUBLIN's joints are used in almost infinitely wide areas, widely applicable to various materials, viscosity, temperature, pressure and speed applications. The rotary joint is a unique and specialized product because it must be able to withstand very high pressure while rotating at very high speeds. To achieve this, it is necessary to achieve a nearly perfect fit of the sealing surface, that is, the seal must be slightly overlapped, regardless of the pressure factor of the medium, and the load or pressure on the sealing surface is kept at a low limit and smooth Rotate steadily and reduce friction to a low limit to extend service life and ensure no leakage.

Product Features

• Monoflow design
• Self-supported rotating union
• Radial housing connection
• Balanced mechanical seals
• Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide
• Felt oiler in seal cavity for air service
• Oiler for relubrication (3 to 5 drops/month)
• Low torque design
• Weight-optimized design
• Aluminum housing; stainless steel or carbon steel rotor, depending on model
• Ball bearings lubricated for life
